Product Details
Description

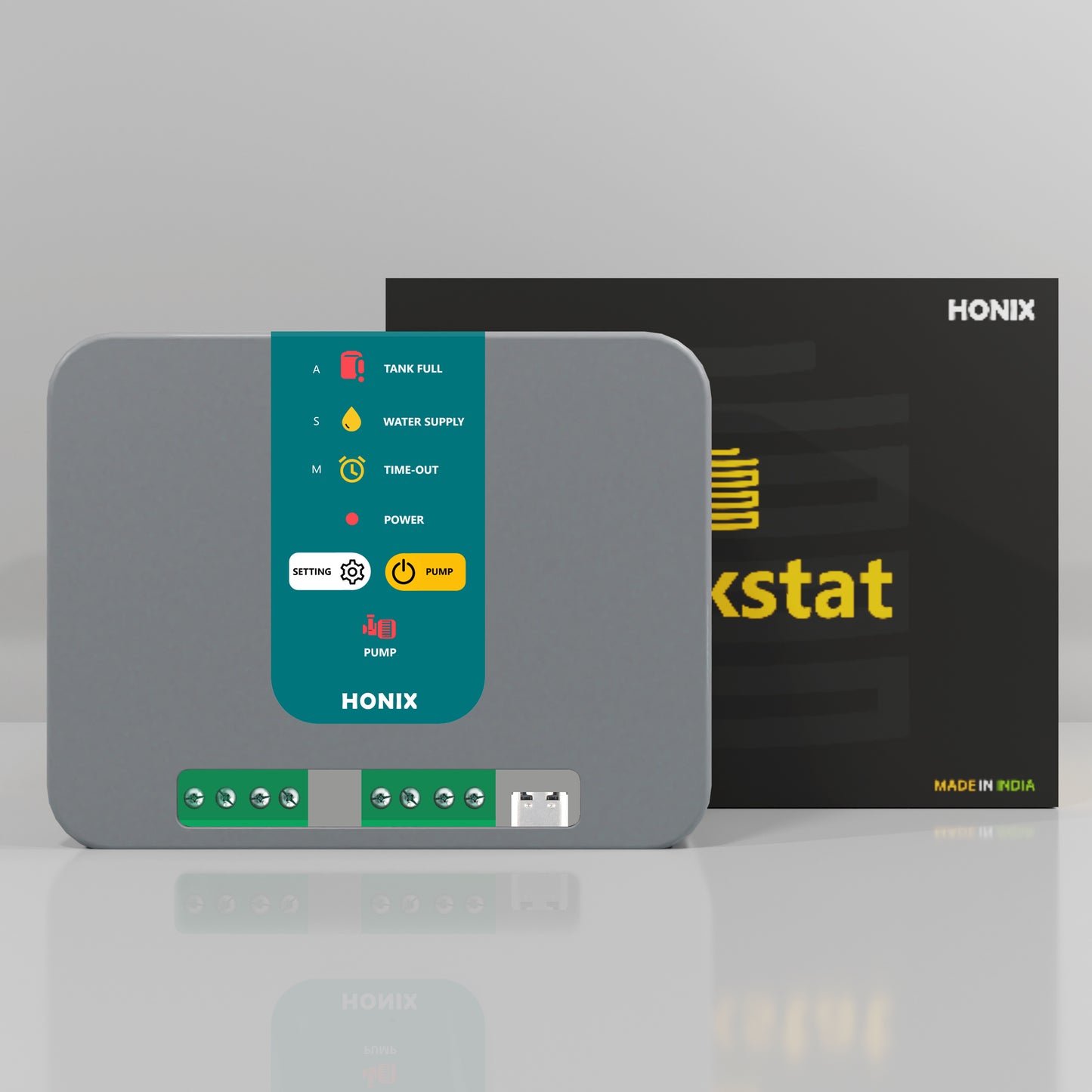

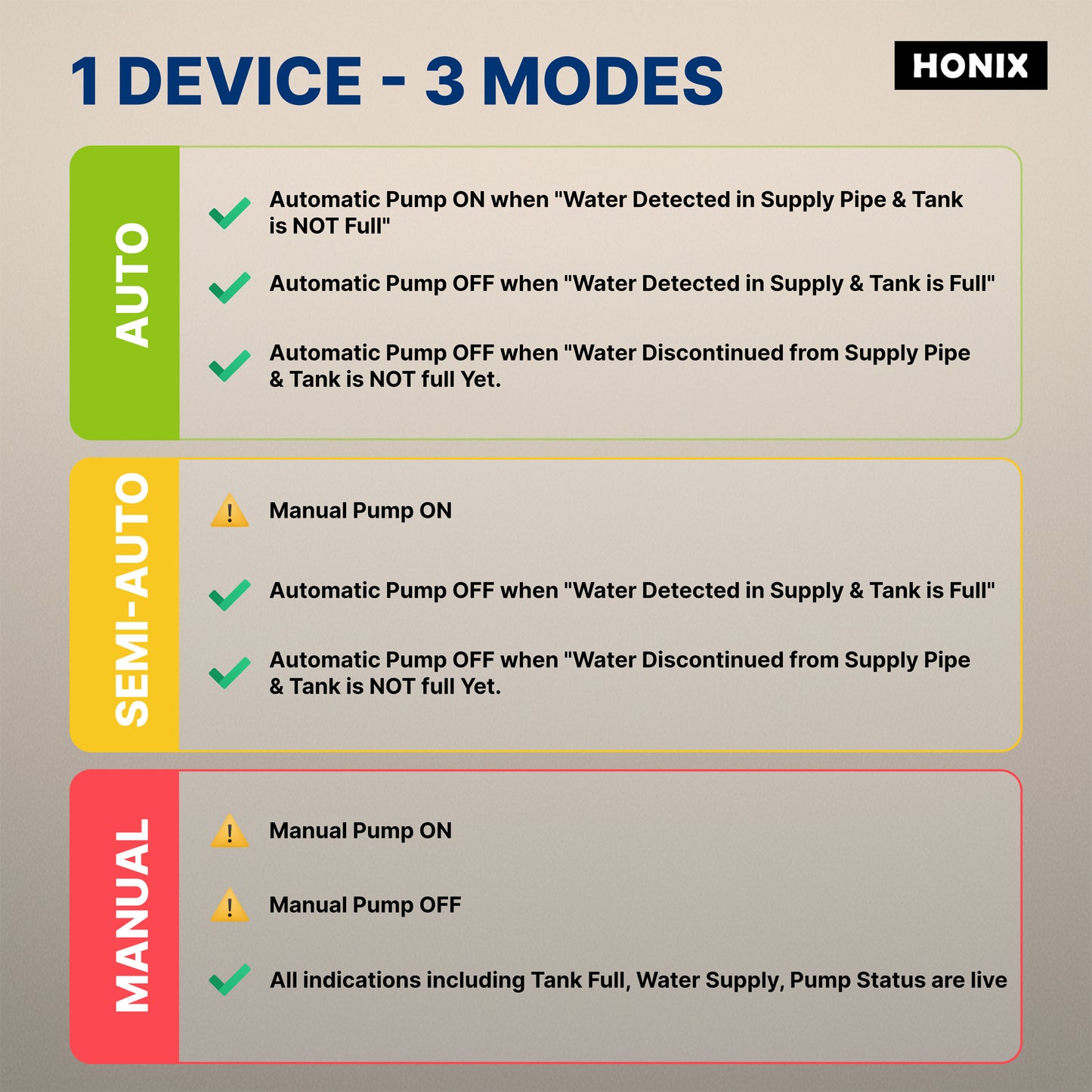

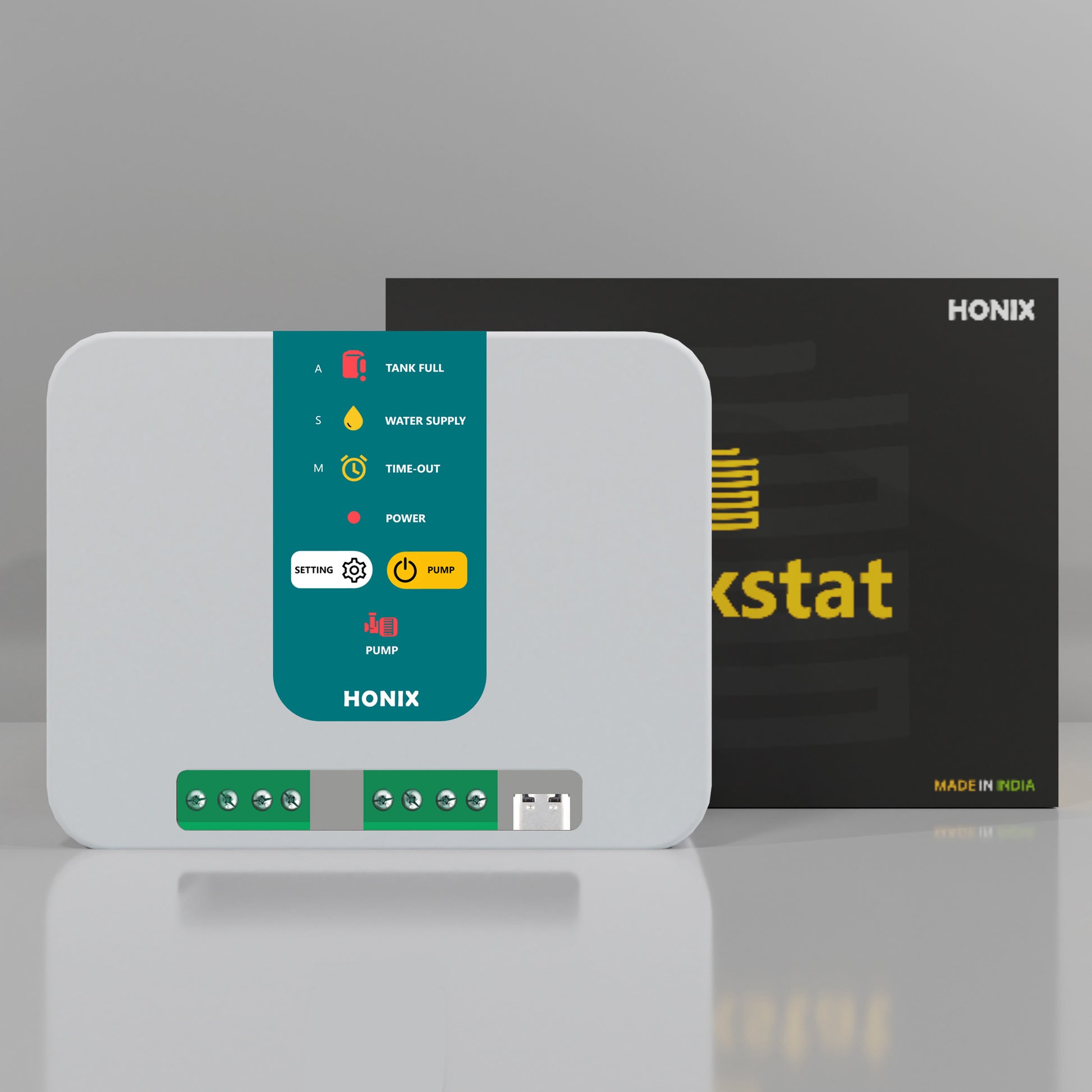

Keep your water supply smartly managed and worry-free with the HONIX MNC - Automatic Water Level Controller, for municipal pipeline a next-generation device engineered for irregular water supplies. Designed with Timer Protection, contactless water supply sensors, Tank full sensor and 3 operating modes, it ensures precise water management, energy savings, and pump protection.

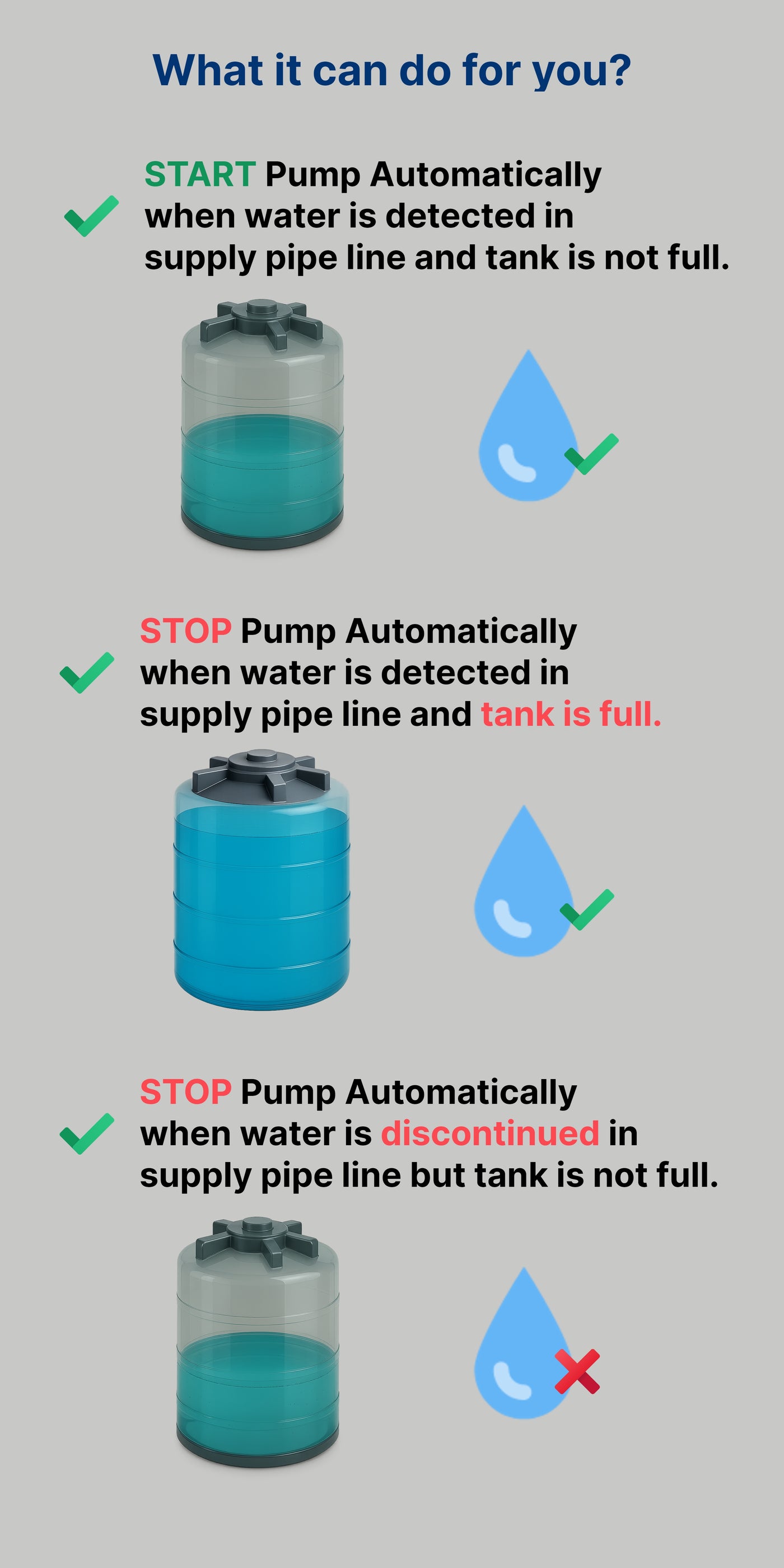

It will start the pump whenever water is available in the supply pipeline and tank is not full. no worries if the water supply is discontinued and tank is not full, as the supply sensor keeps checking for water and shuts off the pump as soon as it detects that the water supply has been discontinued.

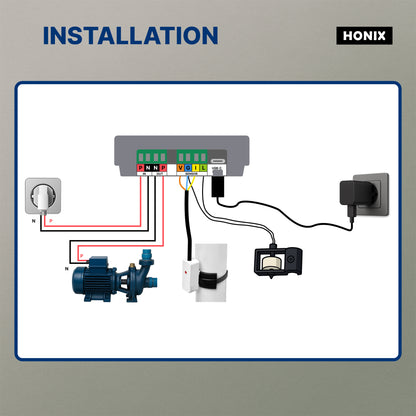

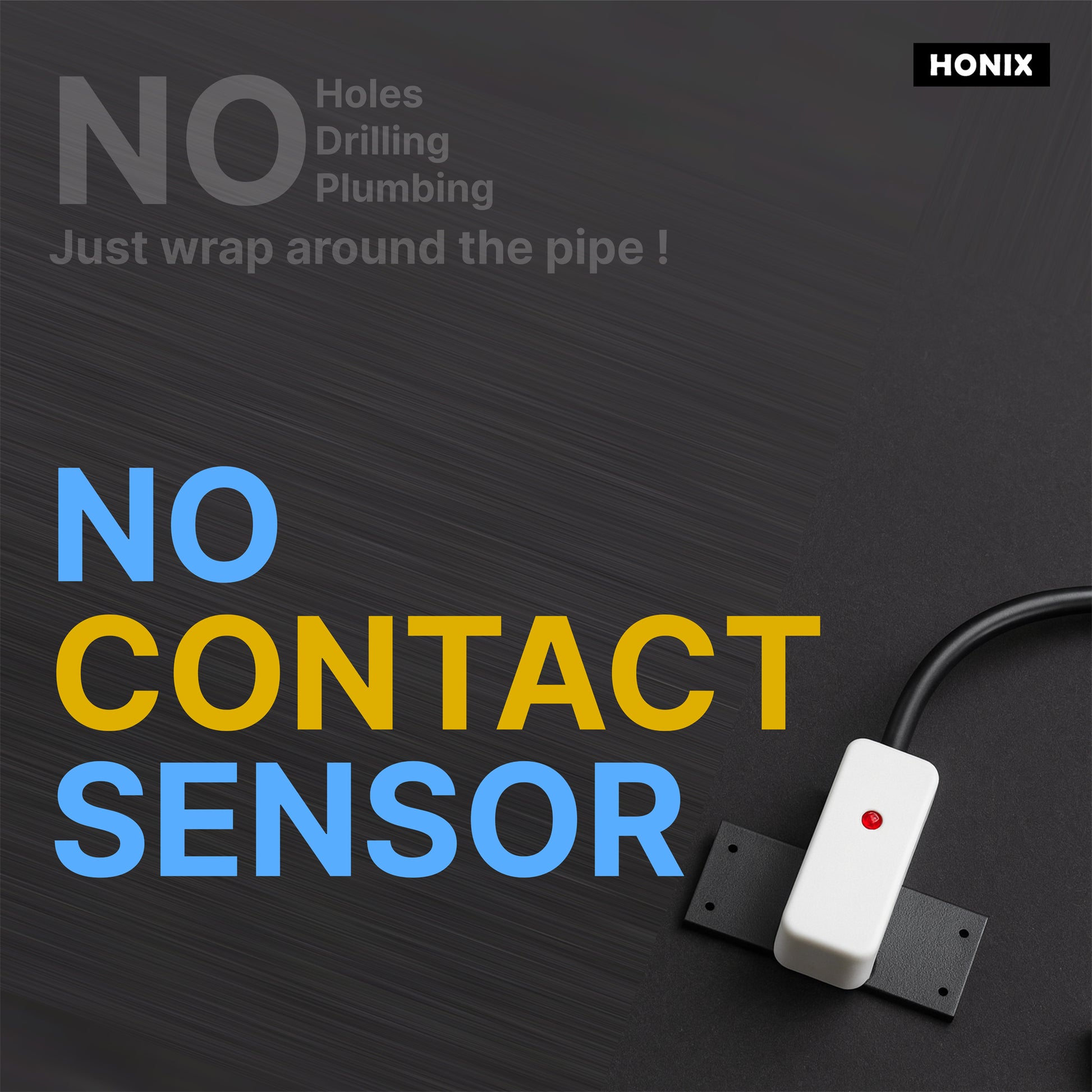

Powered conveniently via USB-C, the HONIX Tankstat MNC offers seamless installation as it does not require any drilling / plumbing. it effortlessly fits onto your existing pipeline.
Specifications
| Brand | HONIX |
| Model | Tankstat MNC |
| Voltage Rating | 5V DC |
| Wattage | 2W |
| Pump Support upto | upto 2.5 HP (20A) |
| Compatible with Pump without starter | YES |
| Compatible with MCB Type starter | YES |
| Compatible with Push Button Starter | NO (Yes, if additional auto-starter is used) |
| Manual pump control allowed | YES |
| Number of Sensor Required | 2 |
| Number of Sensor Provided | 2 |
| Wired / Wireless | Wired |
| Max. Detection Range | 100 M |
| Pump Auto ON / OFF | YES |

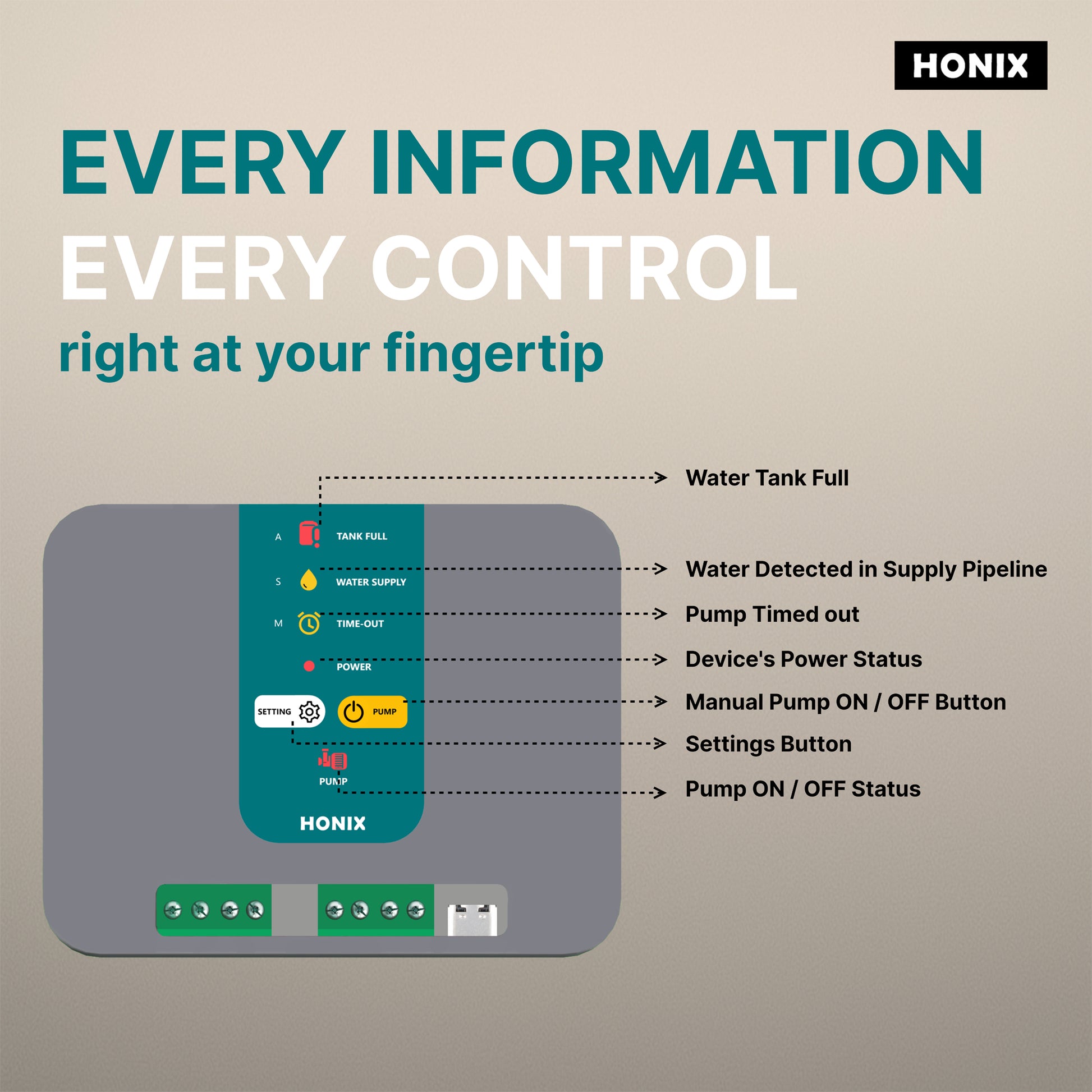

| Number of Level Indication | 2 |
| Display Type | LED |
| Separate color for each level | YES |
| Audible Alarm | NO |
| Sensor Material | Plastic |
| Main Unit Material | ABS |
| Product Dimensions | 11cm x 8.5cm x 4cm |
| Product Weight | 250 grams |

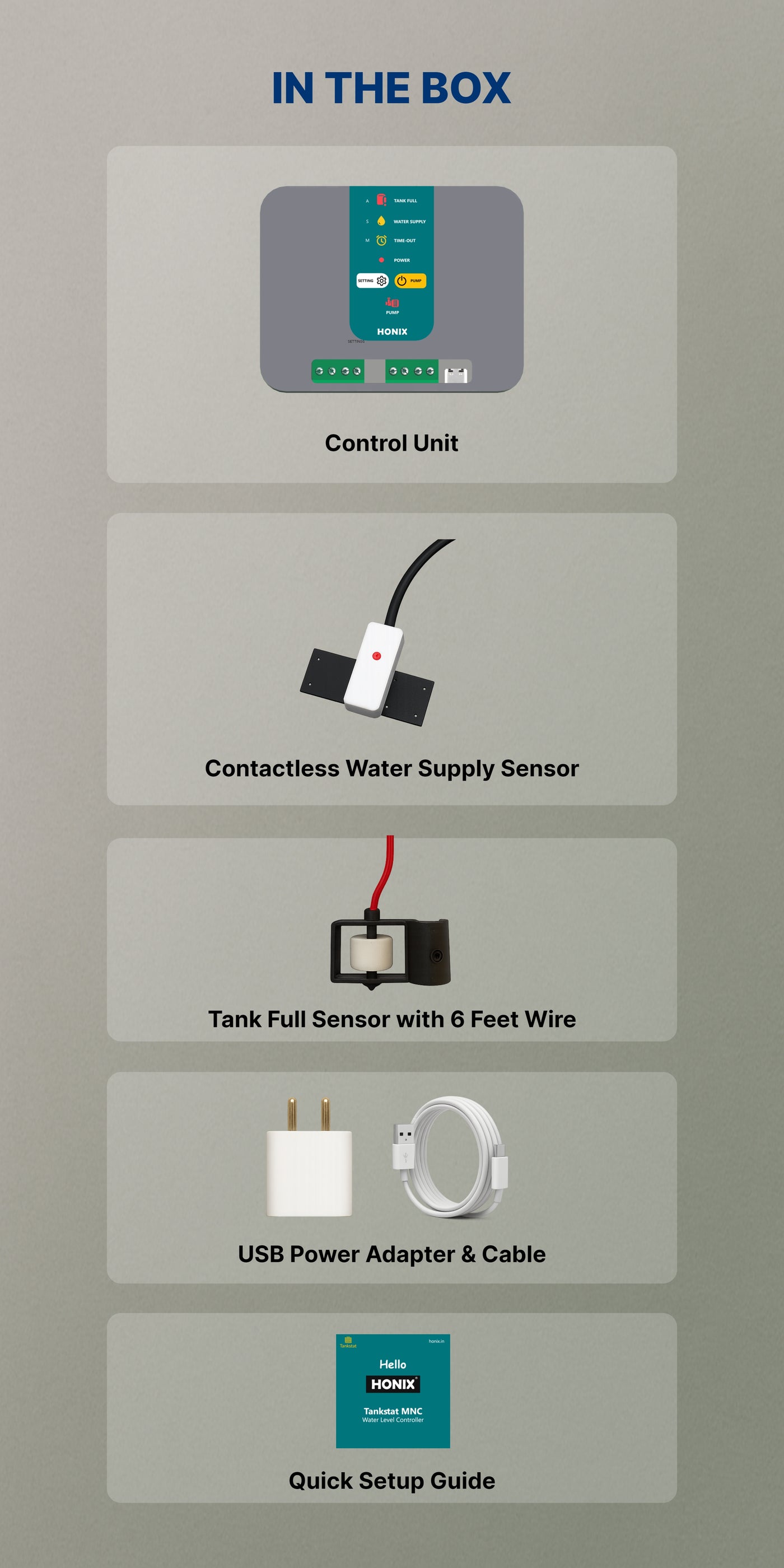

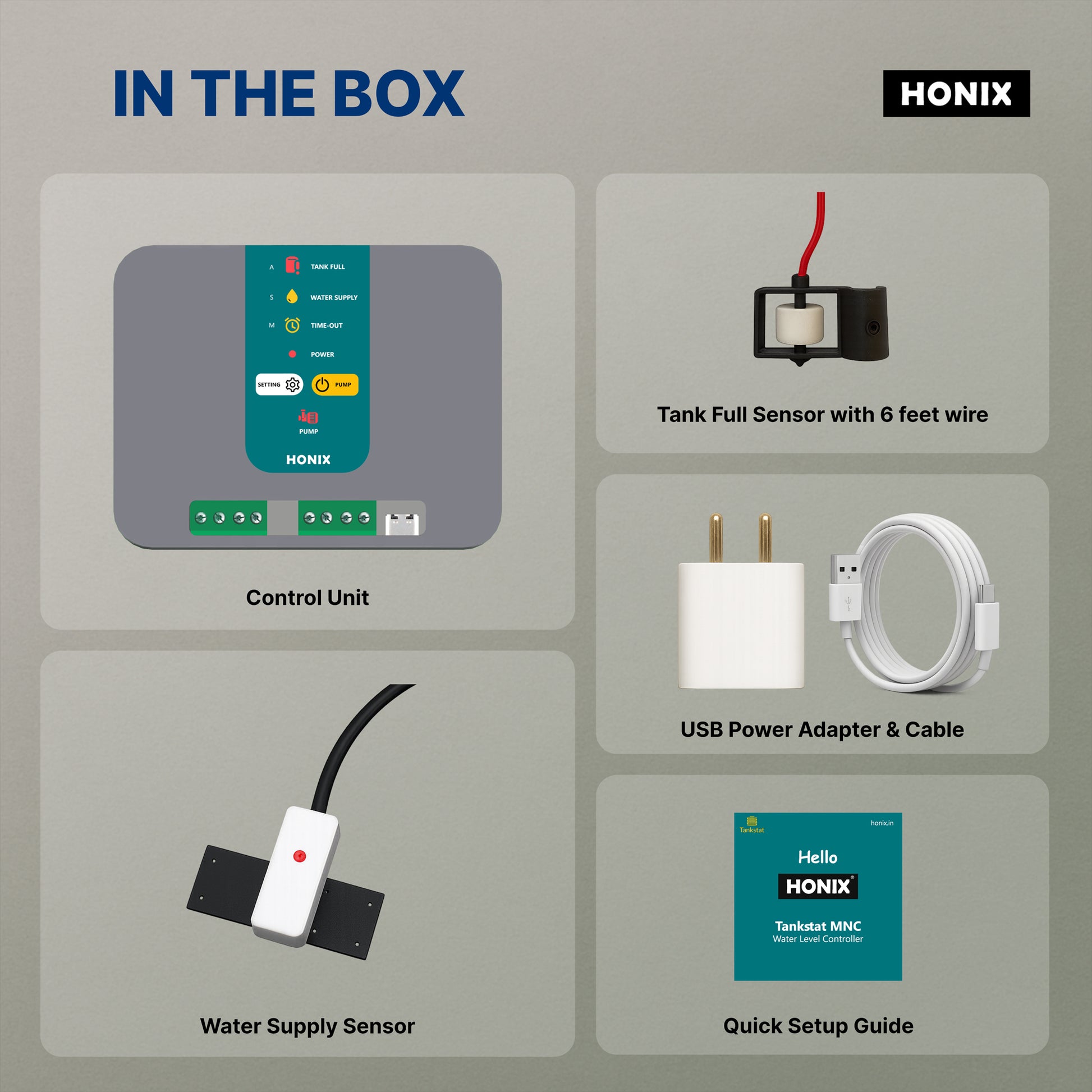

| In the Box | Main Unit x 1, Contactless water supply Sensor x 1, Tank full sensor x 1, USB Adapter x 1, USB Cable x 1, User Manual & Installation Guide. |
Warranty
Warranty Summary: 1 Year Limited Offsite Warranty
Not Covered in Warranty: Physical Damage, Damage Due to incorrect installation, etc.
Terms of Warranty: Against Manufacturing Defect Only.
FAQs
Is Cable included with product?
No, Cable is not included with this product. but the tank full sensors has a 2 Meter (6 Feet) wire connected to it.
Which Cable / Wire can be used with this device?
Any general-purpose electrical wire having at 2 cores can be used for tankfull sensor and 3 core wire for supply sensor.
Does it work with monoblock pump?
Yes, it works with Monoblock Pump.
This device can work with what kind of pump?
This device works with single phase pump which are currently being operated either by a normal electric switch or MCB type starter.
Does it work with single-phase submersible pump?
Yes, it works with single-phase submersible pumps that either do not have a starter or have an MCB-type starter.
Does this device give shock?
No. The device is USB Powered and used only 0.00001A of DC current for sensors for safe and shock-free operation and no conducting part touches the water!
Can it be used with PVC or brick-cement tanks?
Yes, the device works with all types of tanks regardless of their material.
Can it be used in multi-storied buildings?

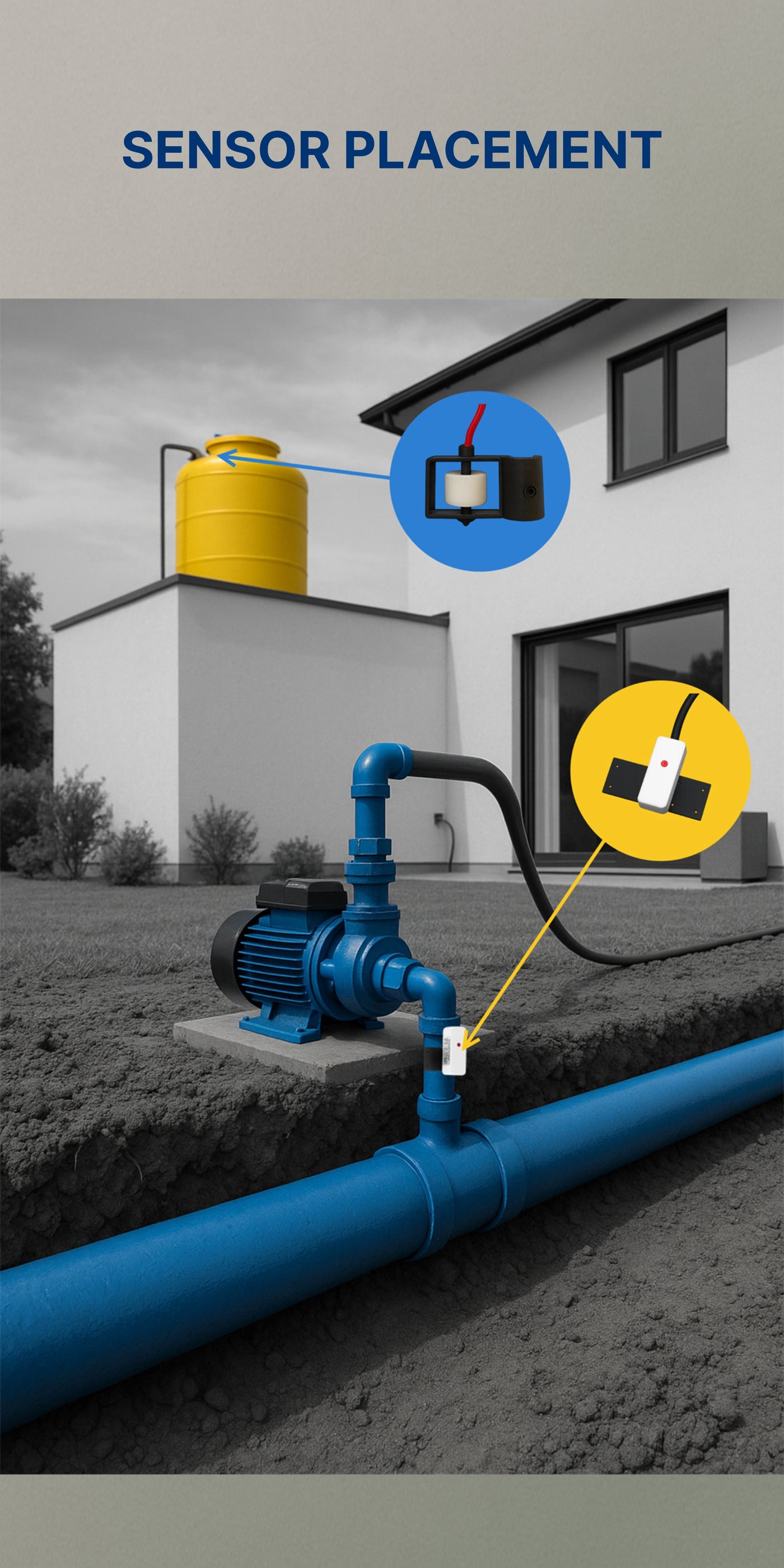

Yes, sensors can be placed up to 100 meters away from the main unit, making it suitable for buildings up to 30 floors.
Don’t have a plug/socket near the tank, can I still use this device?
Yes, you only need a power plug for the main unit, which is installed indoors. Hence No plug is needed near the tank.
Who will install this device?

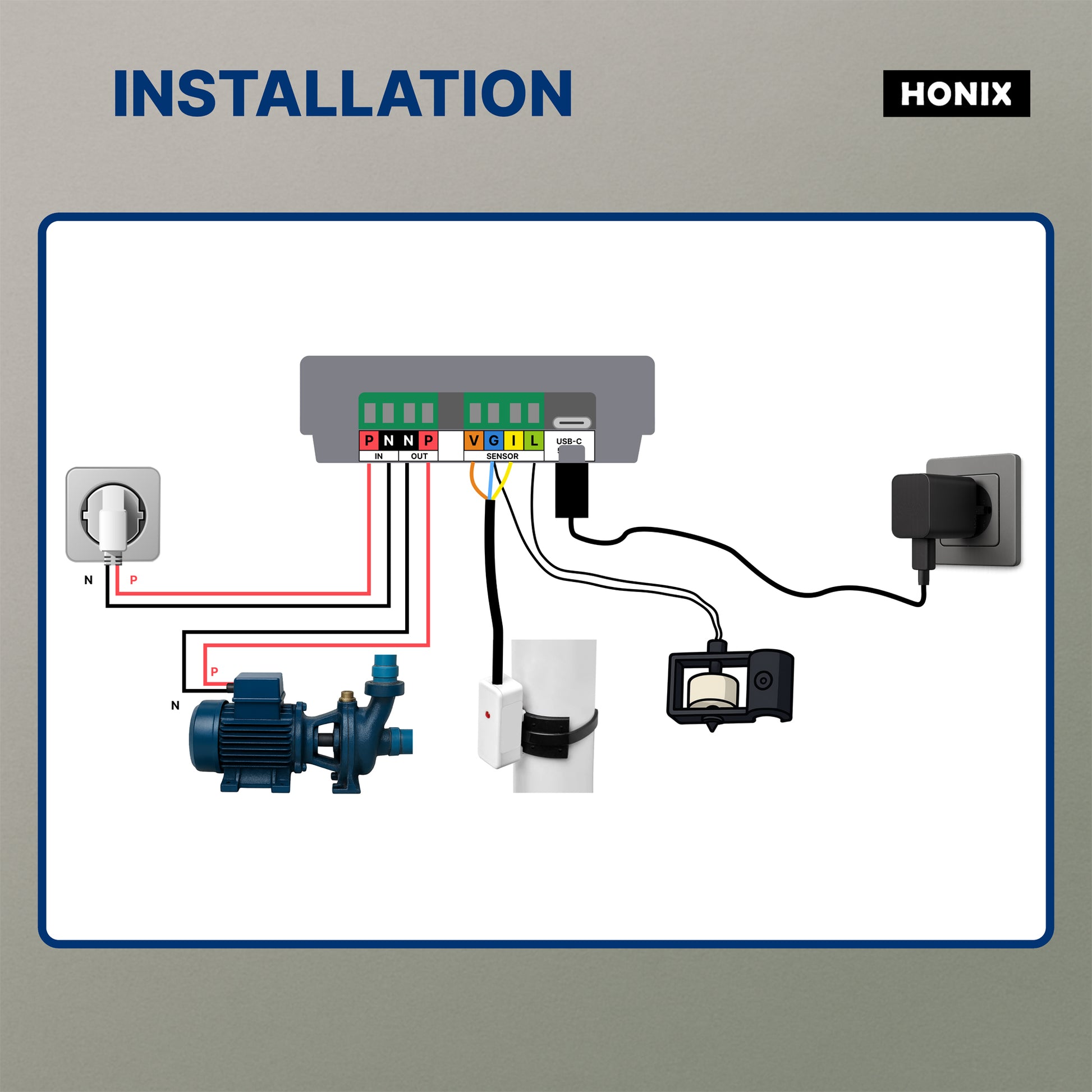

We do not provide installation service as of now. You can get it installed with the help of an electrician. We provide installation guide, installation video, and phone support, if required.
How to avail warranty?
Contact us via call or WhatsApp on our helpline number along with your invoice / order ID to claim warranty. as simple as it can get!
