Description

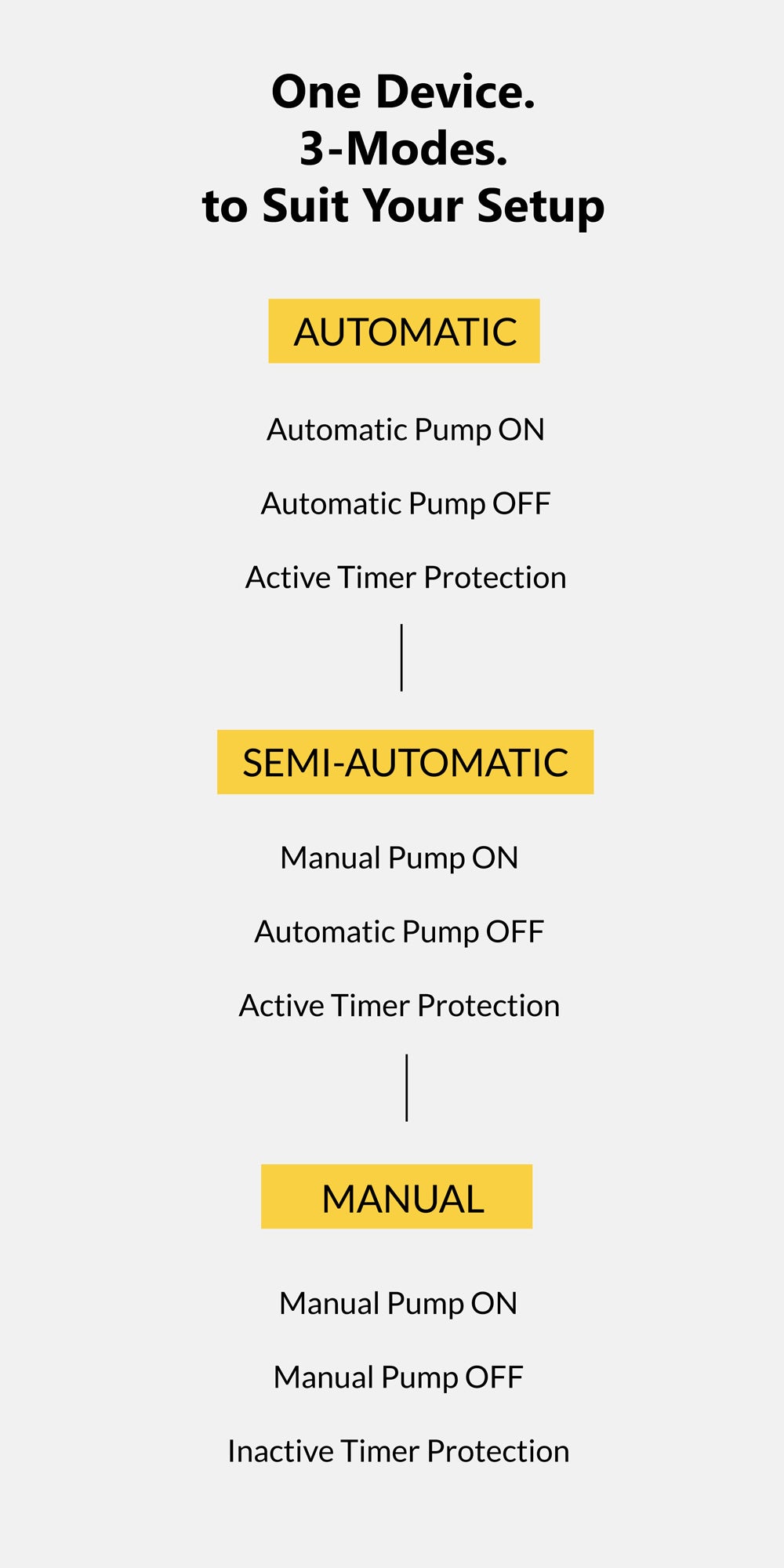

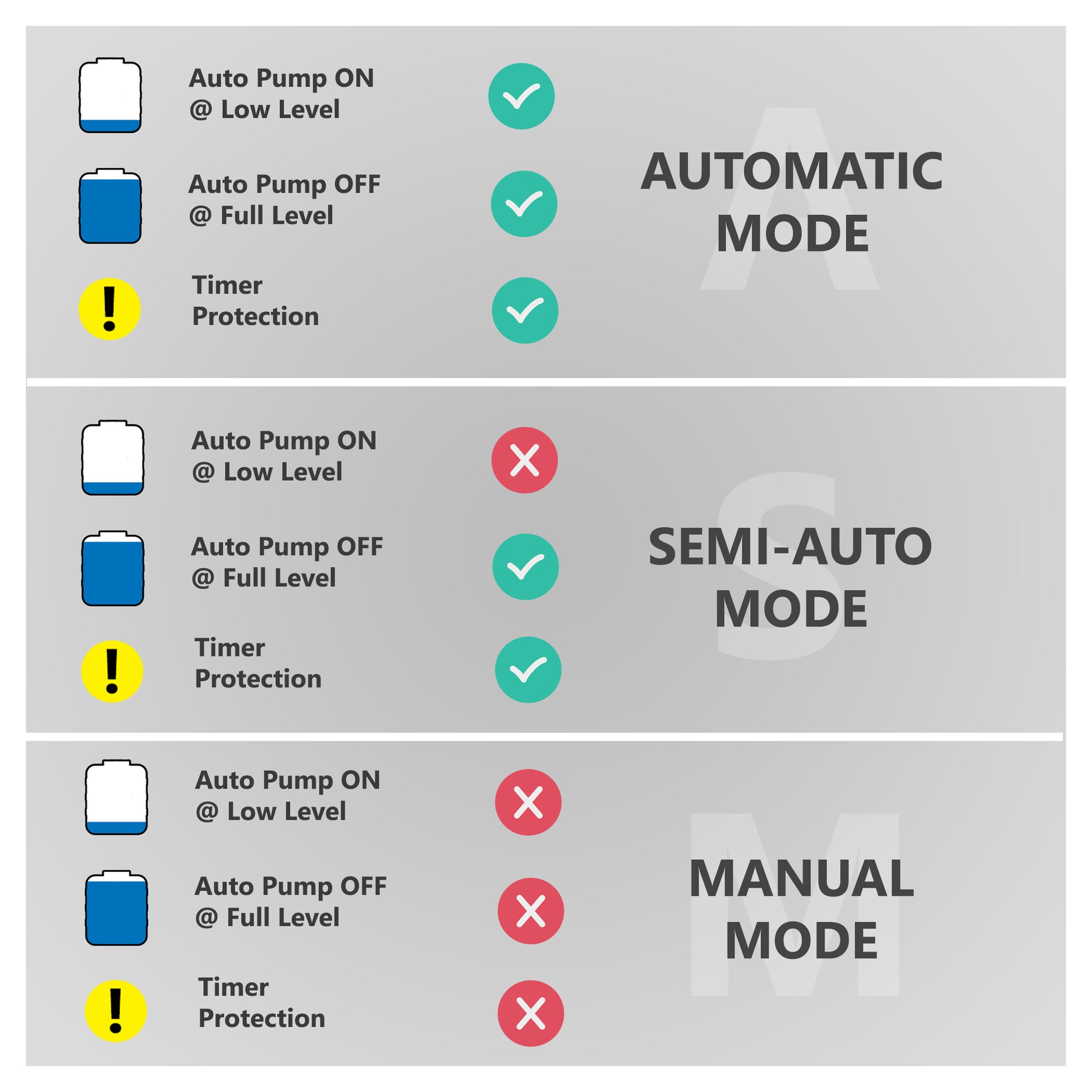

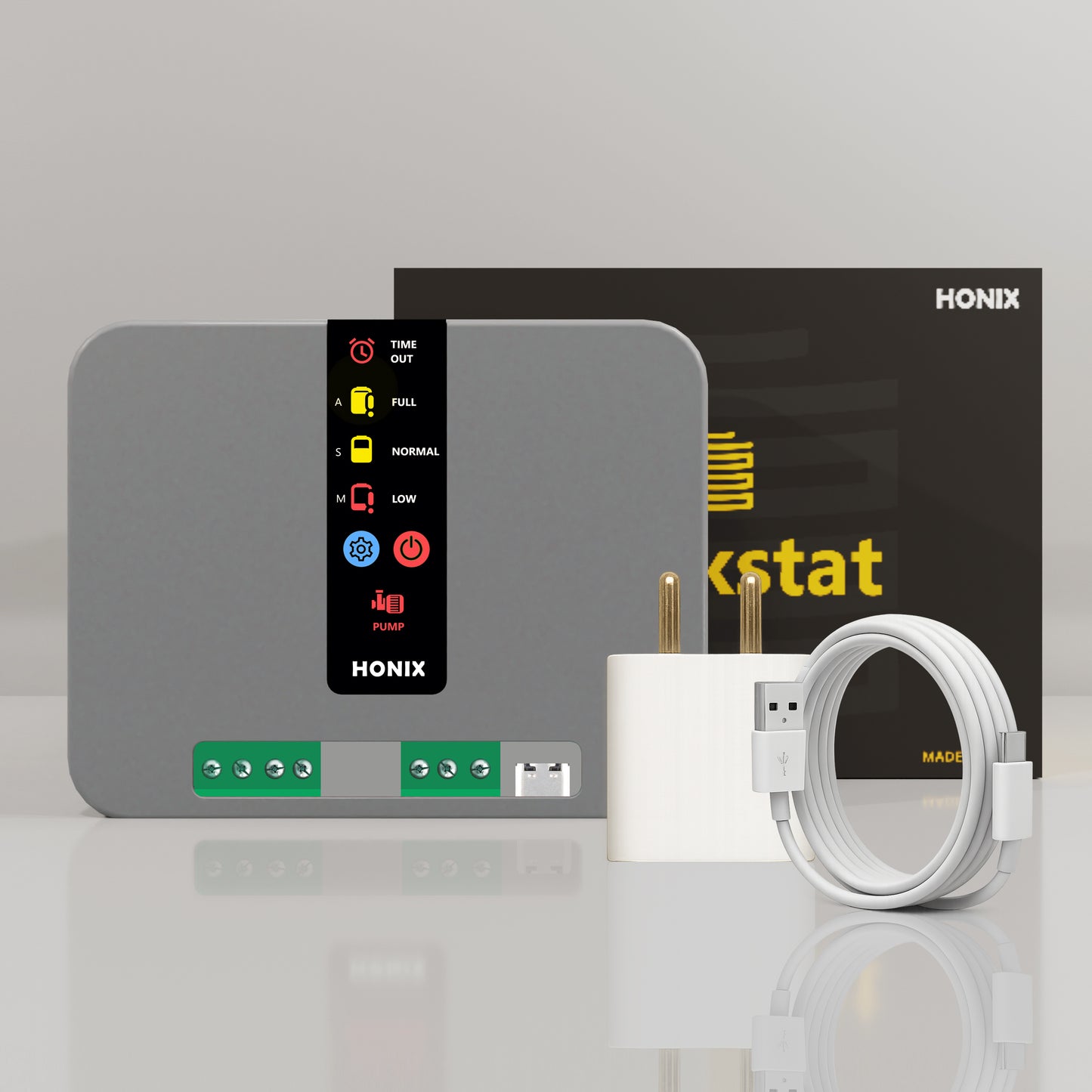

Keep your water supply smartly managed and worry-free with the HONIX Fully Automatic Water Level Controller, a next-generation device engineered for overhead water tanks. Designed with Timer Protection, 3 advanced sensors, and 3 operating modes, it ensures precise water management, energy savings, and pump protection.

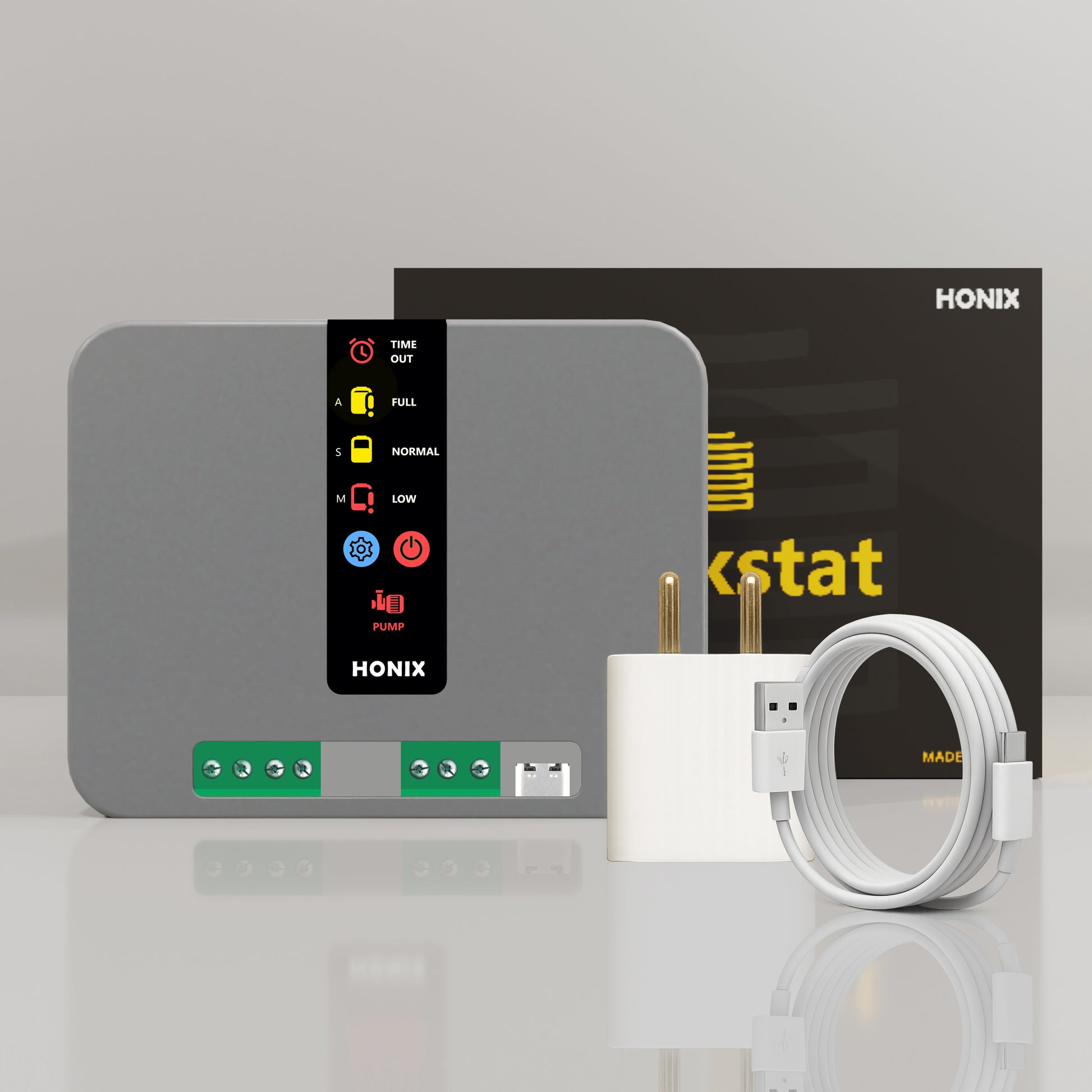

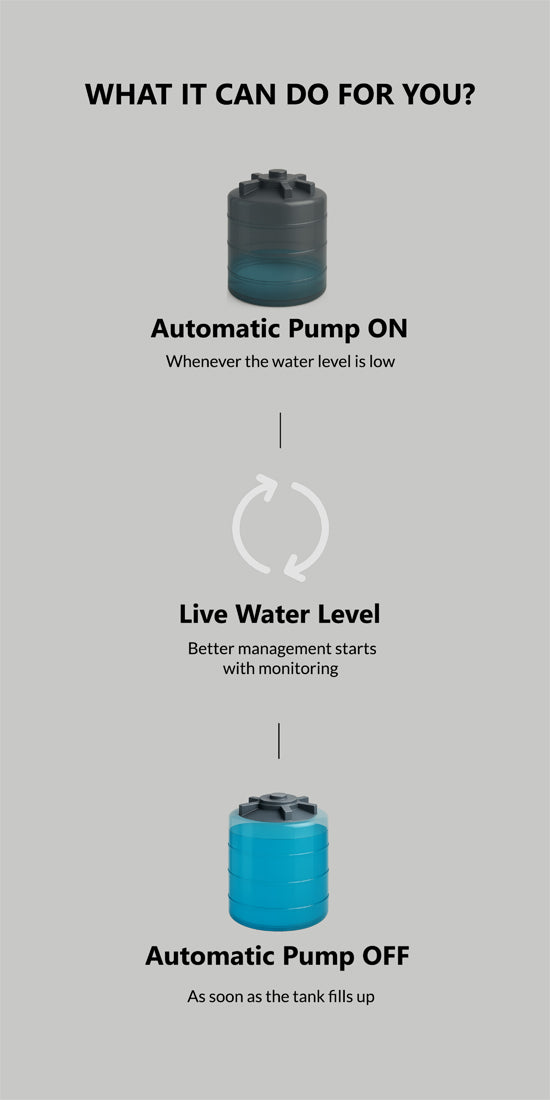

Powered conveniently via USB-C, the HONIX Tankstat STC offers seamless automation to prevent empty tank, overflow, and motor damage, making it an ideal solution for homes, apartments, commercial buildings, and farms.
Specifications
| Brand | HONIX |
| Model | Tankstat STC |
| Voltage Rating | 5V DC |
| Wattage | 2W |
| Pump Support upto | upto 2.5 HP (20A) |

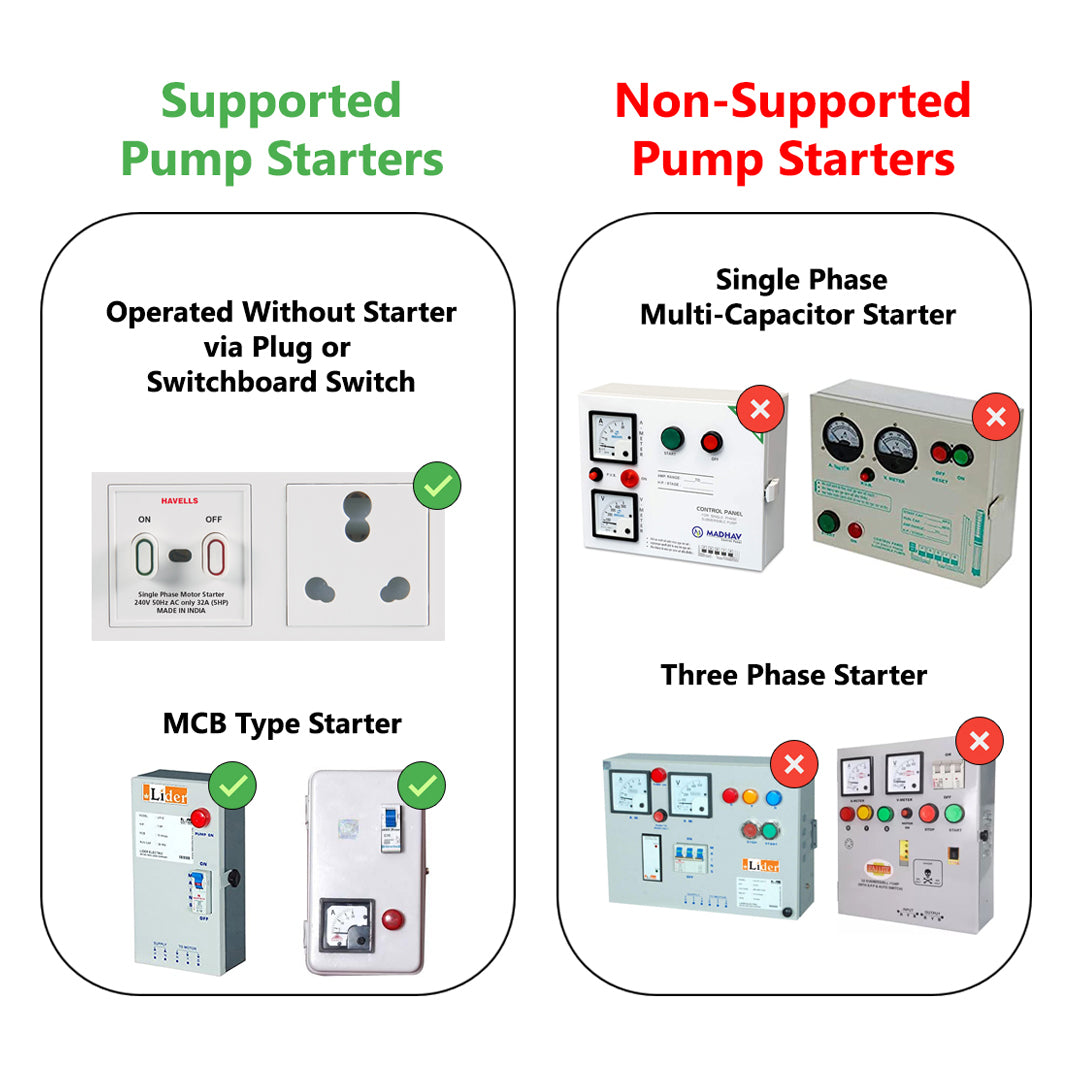

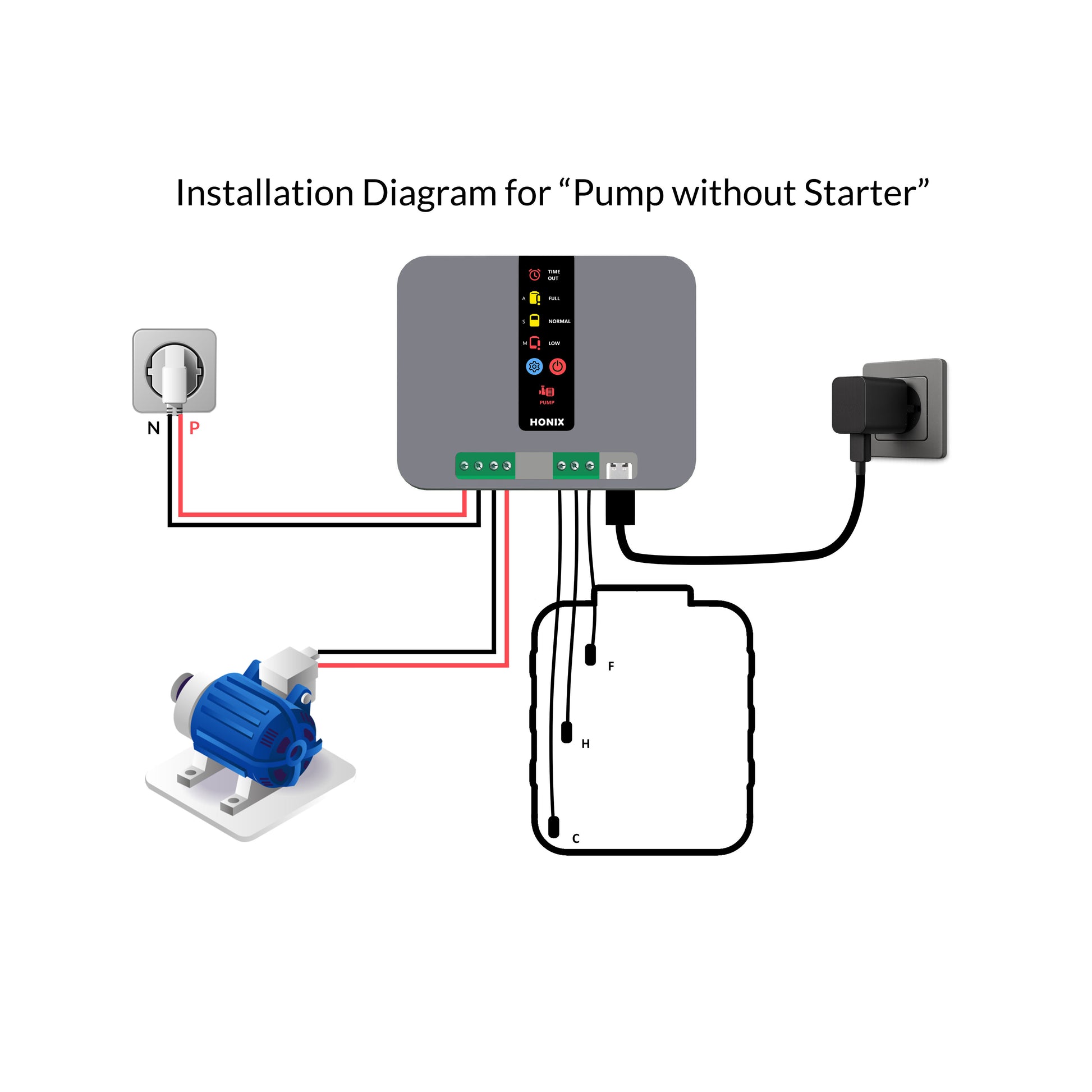

| Compatible with Pump without starter | YES |

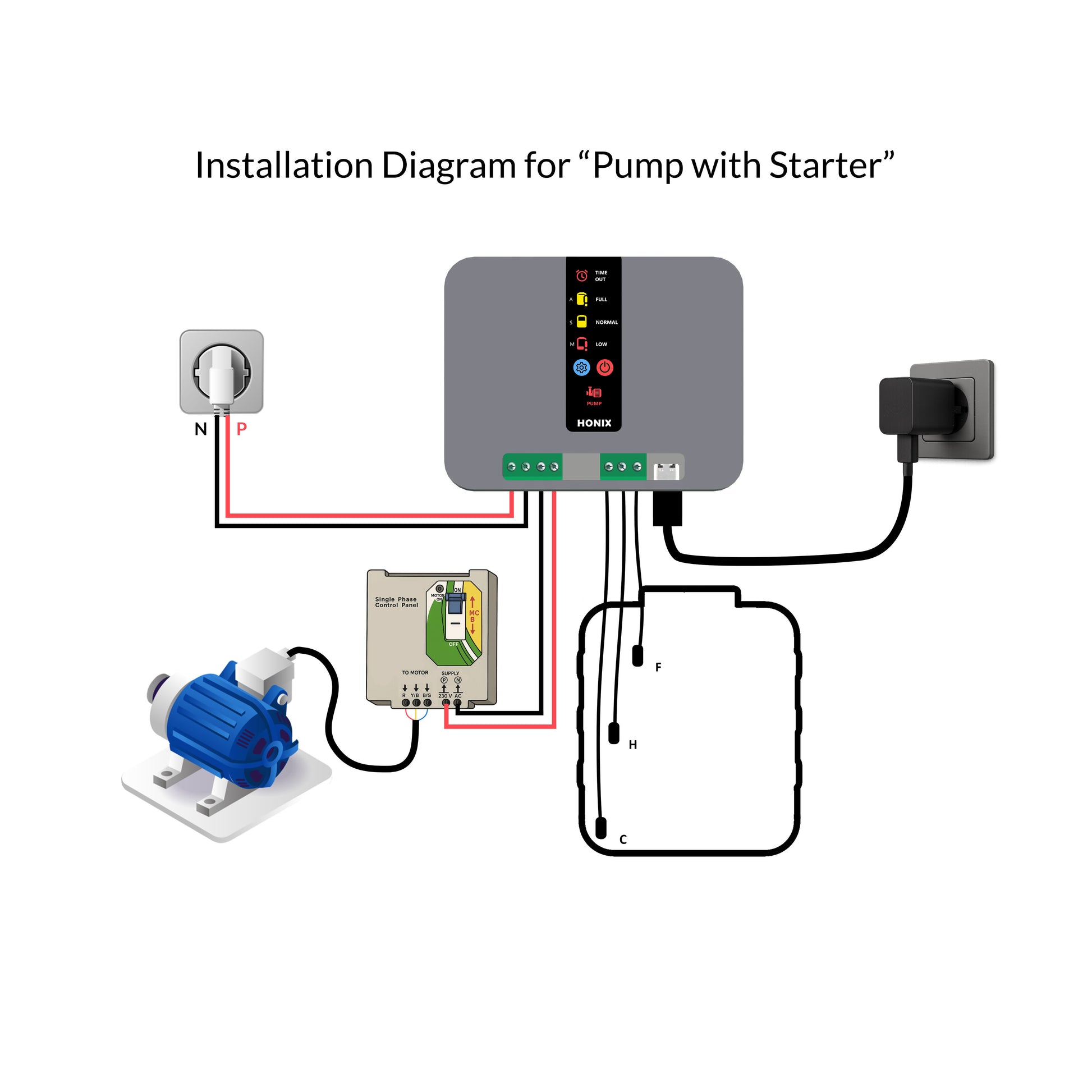

| Compatible with MCB Type starter | YES |
| Compatible with Push Button Starter | NO (Yes, if additional auto-starter is used) |
| Manual pump control allowed | YES |
| Number of Sensor Required | 3 |
| Number of Sensor Provided | 3 |
| Wired / Wireless | Wired |
| Max. Detection Range | 100 M |
| Pump Auto ON / OFF | YES |

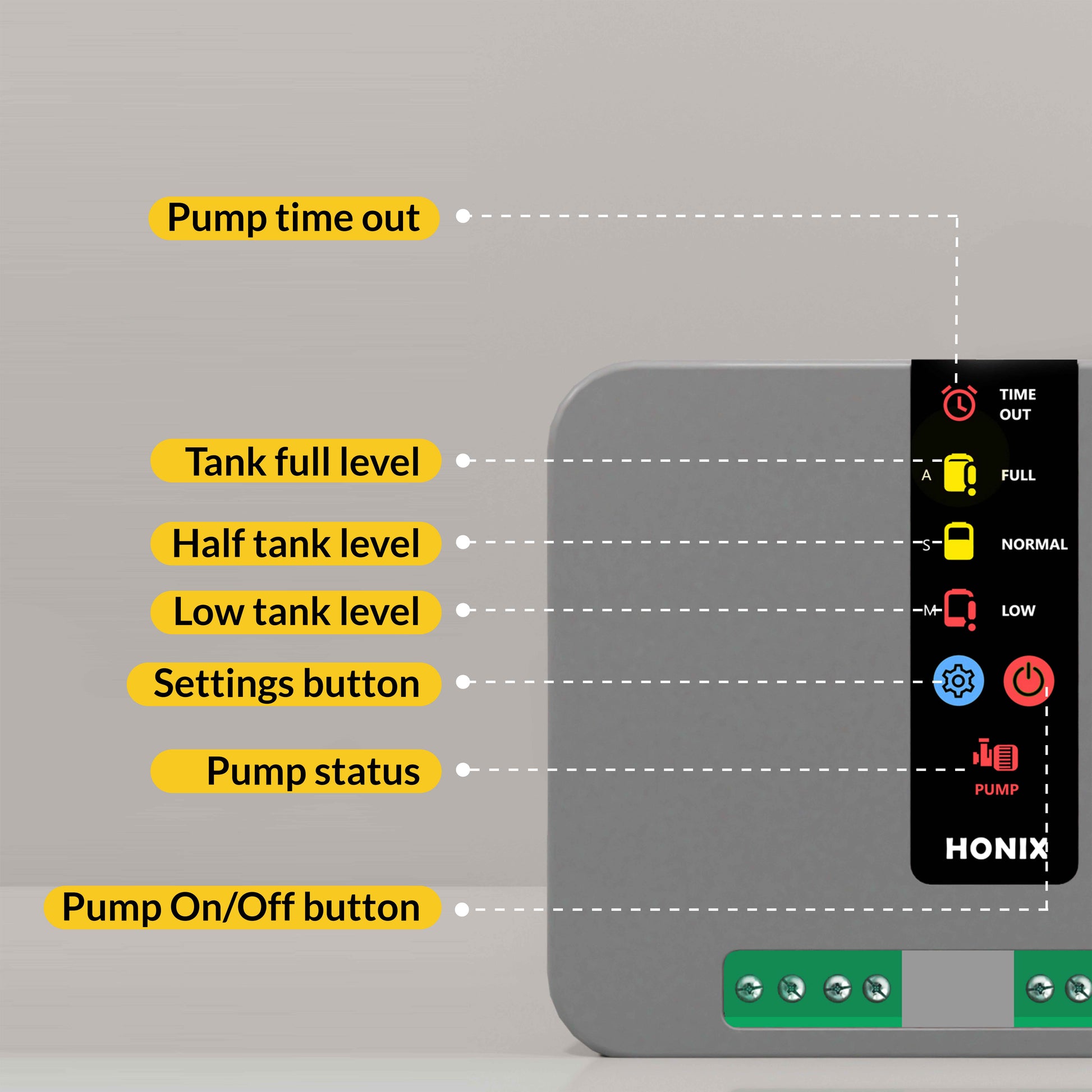

| Number of Level Indication | 3 |
| Display Type | LED |
| Separate color for each level | YES |
| Audible Alarm | NO |
| Sensor Material | SS316 |
| Main Unit Material | ABS |
| Product Dimensions | 11cm x 8.5cm x 4cm |
| Product Weight | 250 grams |

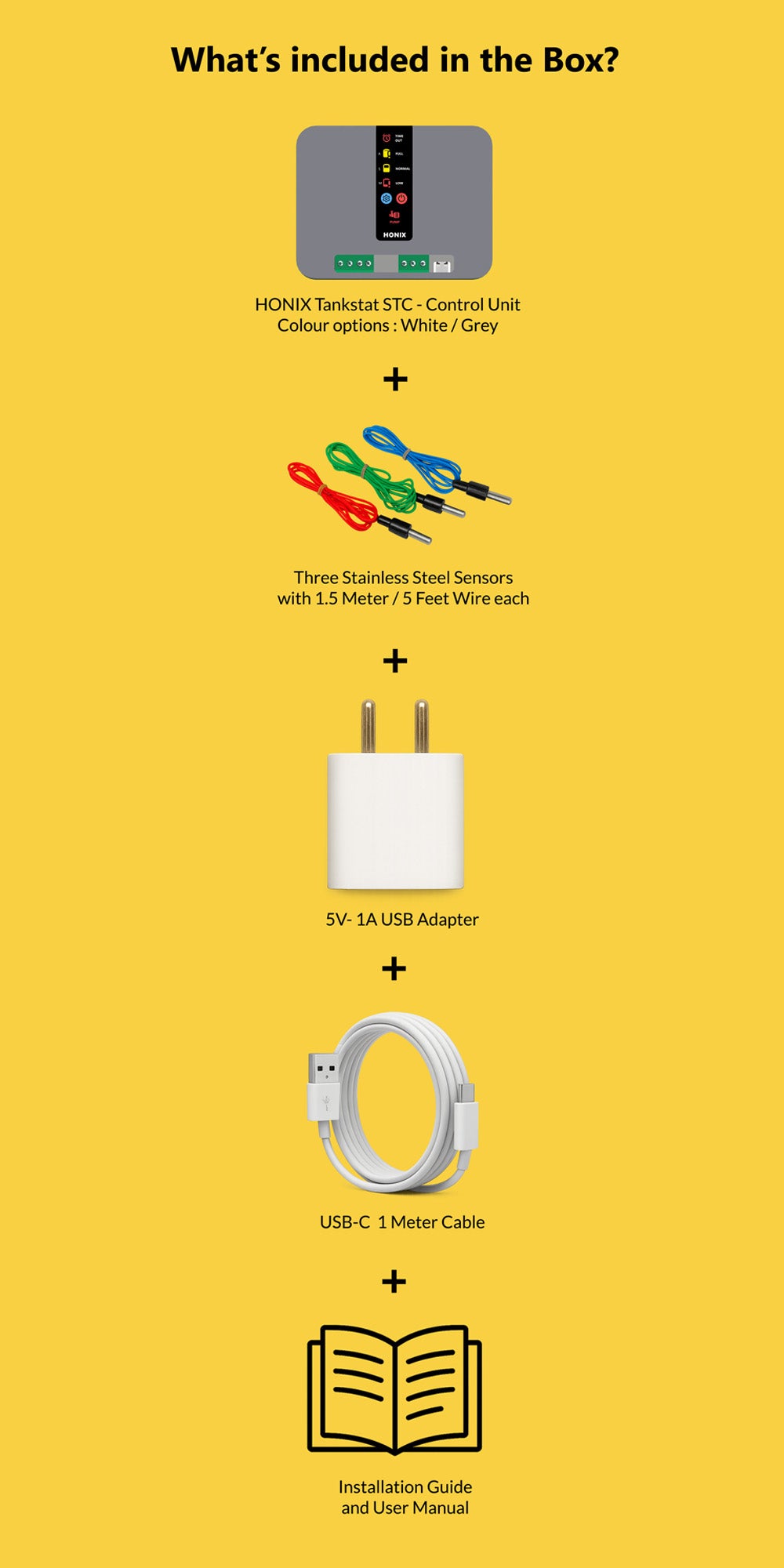

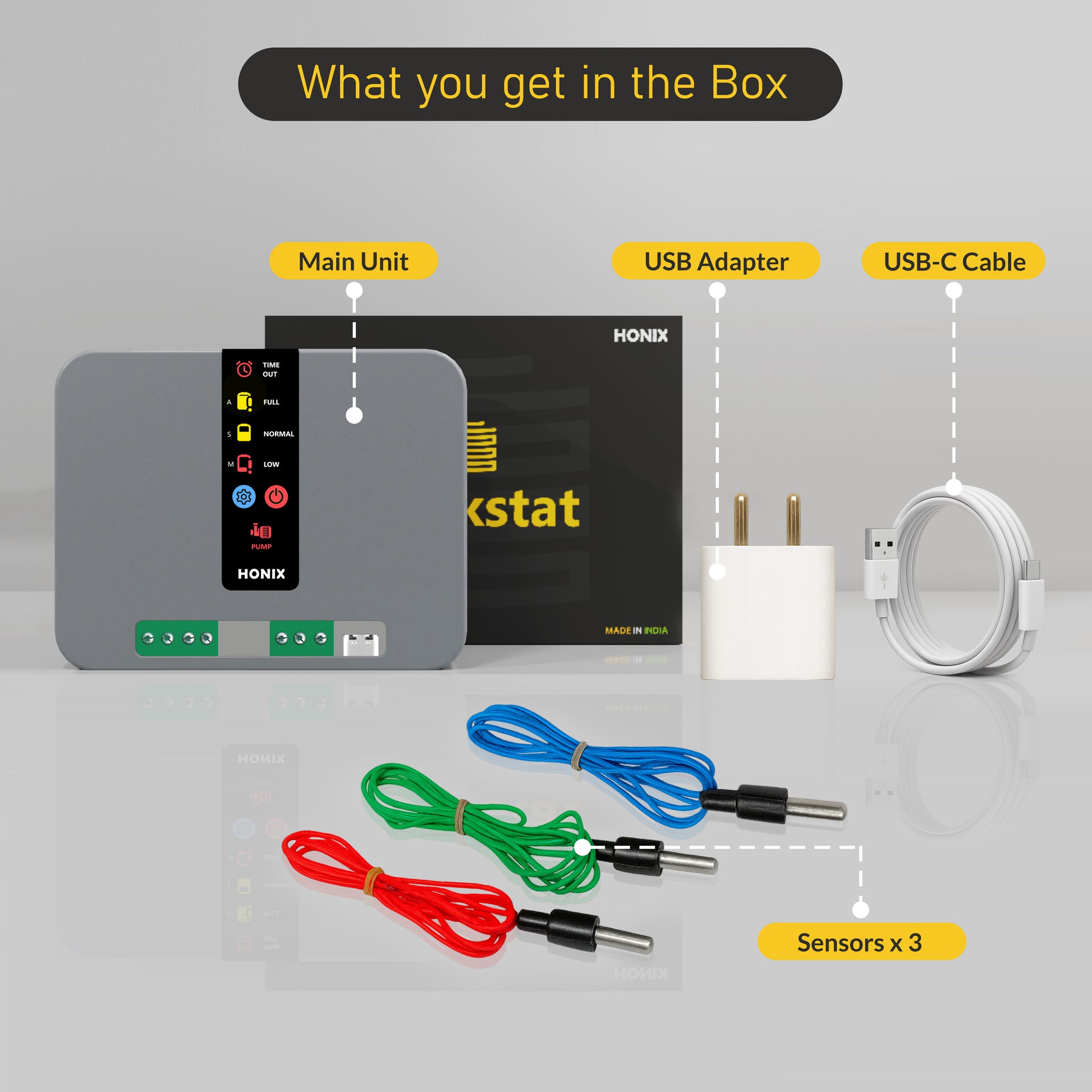

| In the Box | Main Unit x 1, Sensor x 3, USB Adapter x 1, USB Cable x 1, User Manual & Installation Guide, Drill Marking Stencil |
Warranty
Warranty Summary: 1 Year Limited Offsite Warranty on Main Unit and 9 Months Limited Warranty on USB Adapter and USB Cable.
Not Covered in Warranty: Sensors.
Terms of Warranty: Against Manufacturing Defect Only.
FAQs
Is Cable included with product?
No, Cable is not included with this product. but each sensors has a 1.5 Meter (6 Feet) wire connected to it.
Which Cable / Wire can be used with this device?
Any general-purpose electrical wire having at least 3 cores can be used with this device.
Does it work with monoblock pump?
Yes, it works with Monoblock Pump.
This device can work with what kind of pump?

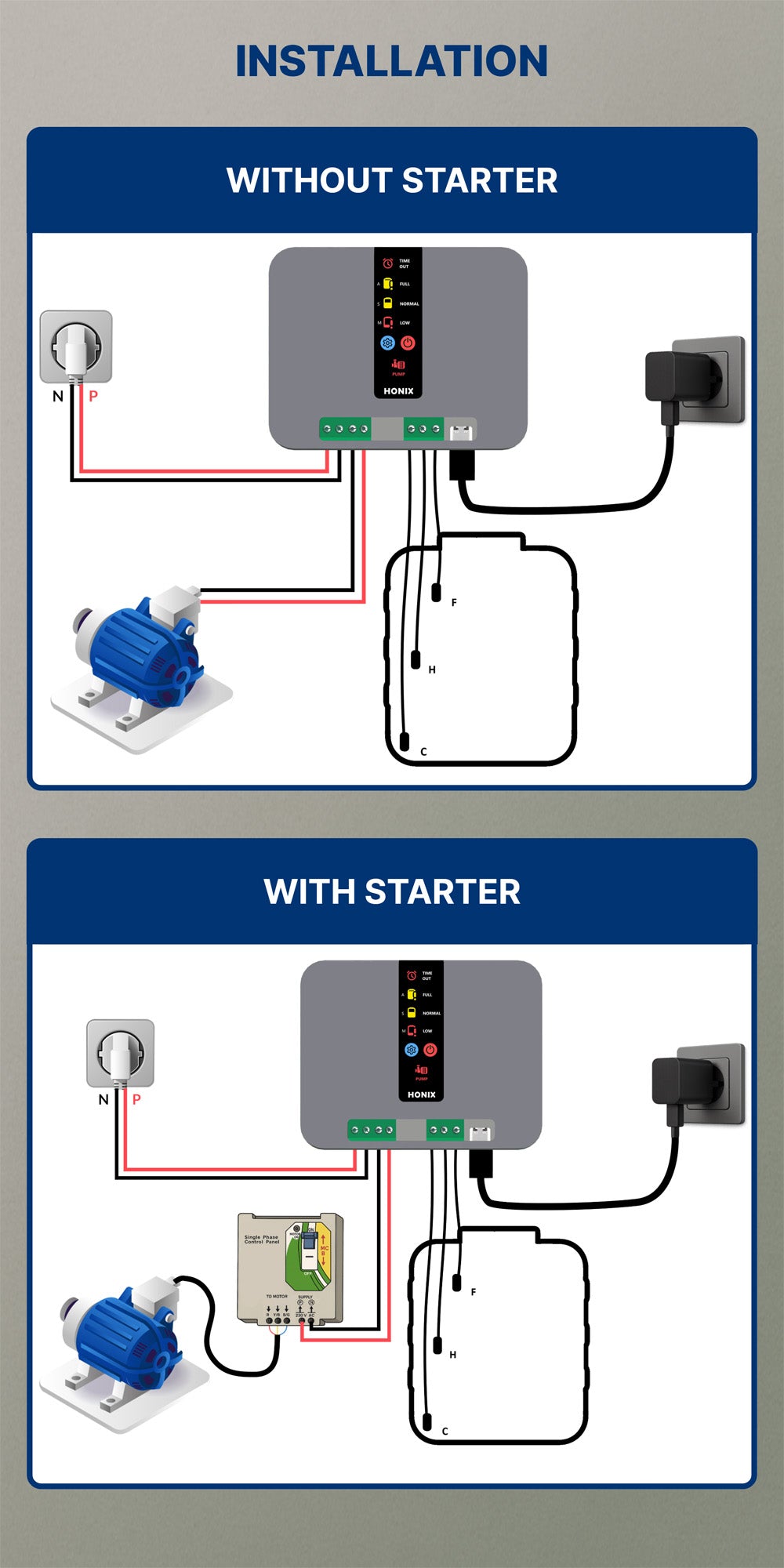

This device works with single phase pump which are currently being operated either by a normal electric switch or MCB type starter.
Does it work with single-phase submersible pump?
Yes, it works with single-phase submersible pumps that either do not have a starter or have an MCB-type starter.
Does this device give shock?
No. The device is USB Powered and used only 0.00001A of DC current for sensors for safe and shock-free operation.
Can it be used with PVC or brick-cement tanks?
Yes, the device works with all types of tanks regardless of their material.
Can it be used in multi-storied buildings?
Yes, sensors can be placed up to 100 meters away from the main unit, making it suitable for buildings up to 30 floors.
Don’t have a plug/socket near the tank, can I still use this device?
Yes, you only need a power plug for the main unit, which is installed indoors. Hence No plug is needed near the tank.
Who will install this device?
We do not provide installation service as of now. You can get it installed with the help of an electrician. We provide installation guide, installation video, and phone support, if required.
How to avail warranty?
Contact us via call or WhatsApp on our helpline number along with your invoice / order ID to claim warranty. as simple as it can get!
